Product Details

Technical Specifications

Typical Properties

Details

Adhesion Strength (metric)

28 N/100mm

Back-Side Adhesive Thickness (metric)

0.03 mm

Backing (Carrier) Material

PVC

Backing (Carrier) Thickness (Metric)

0.1 mm

Backing Material

Vinyl

Backing Thickness (metric)

0.1 mm

Brands

3M™

Elongation at Break

1.3

Industries

Automotive, Specialty Vehicle, General Industrial, MRO, Transportation, Military and Government

Maximum Operating Temperature (Celsius)

77 ℃

Minimum Operating Temperature (Celsius)

4 ℃

Performance Level

High Performance

Product Colour

Yellow

Product Form

Roll

Shelf Life in Months (from date of manufacture)

18

Tensile Strength (metric)

24.5 N/100mm

Total Tape Thickness without Liner (metric)

0.14 mm

Units per Case

24.0 Roll

Dimensions and Classifications

Overall Height (Metric)

0.1 mm

Overall Length (Metric)

32.9 Metre

Overall Width (Metric)

5.1 cm

Highlights

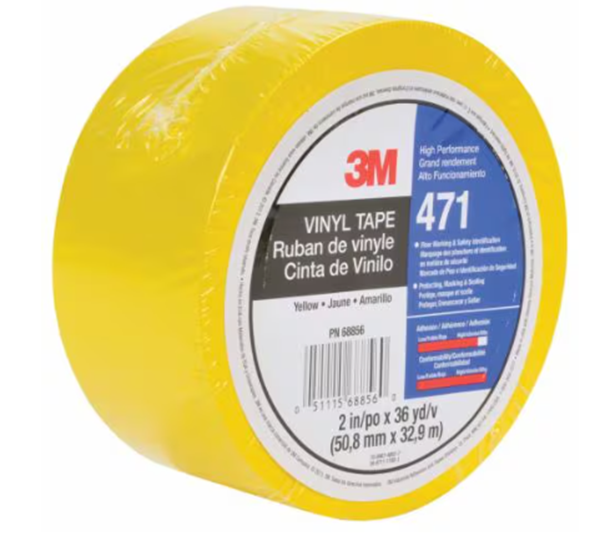

• Yellow, 4.1 mil vinyl backing, 170 degrees F

• High performance vinyl tape, vivid colors, plastic core availability, good resistance to tape curl

• Non-corrosive, flexible, abrasion resistant, conformable, wear resistant, clean removal, maintain color, easy to apply, versatile, moisture resistant, visible, multiple colors

• Automotive, aerospace, military, general industrial, MRO, facilities management, transportation, marine

• Lane marking, floor marking, safety coding, hazard marking, identifying, sealing, color coding, paint masking, protecting, bundling, OSHA color coding, sealing

• EXCELLENT SEALING: A combination of versatile adhesive and chemical resistant backing can create a robust long or short term seal

• POTENTIAL APPLICATIONS: Lane and safety marking, temporary surface protection, anodizing and electroplating, fine line masking, color coding, storage container sealing, bundling and reinforcing

DOWNLOADS

3M Engineered Industrial Tapes Product E4E Catalog
